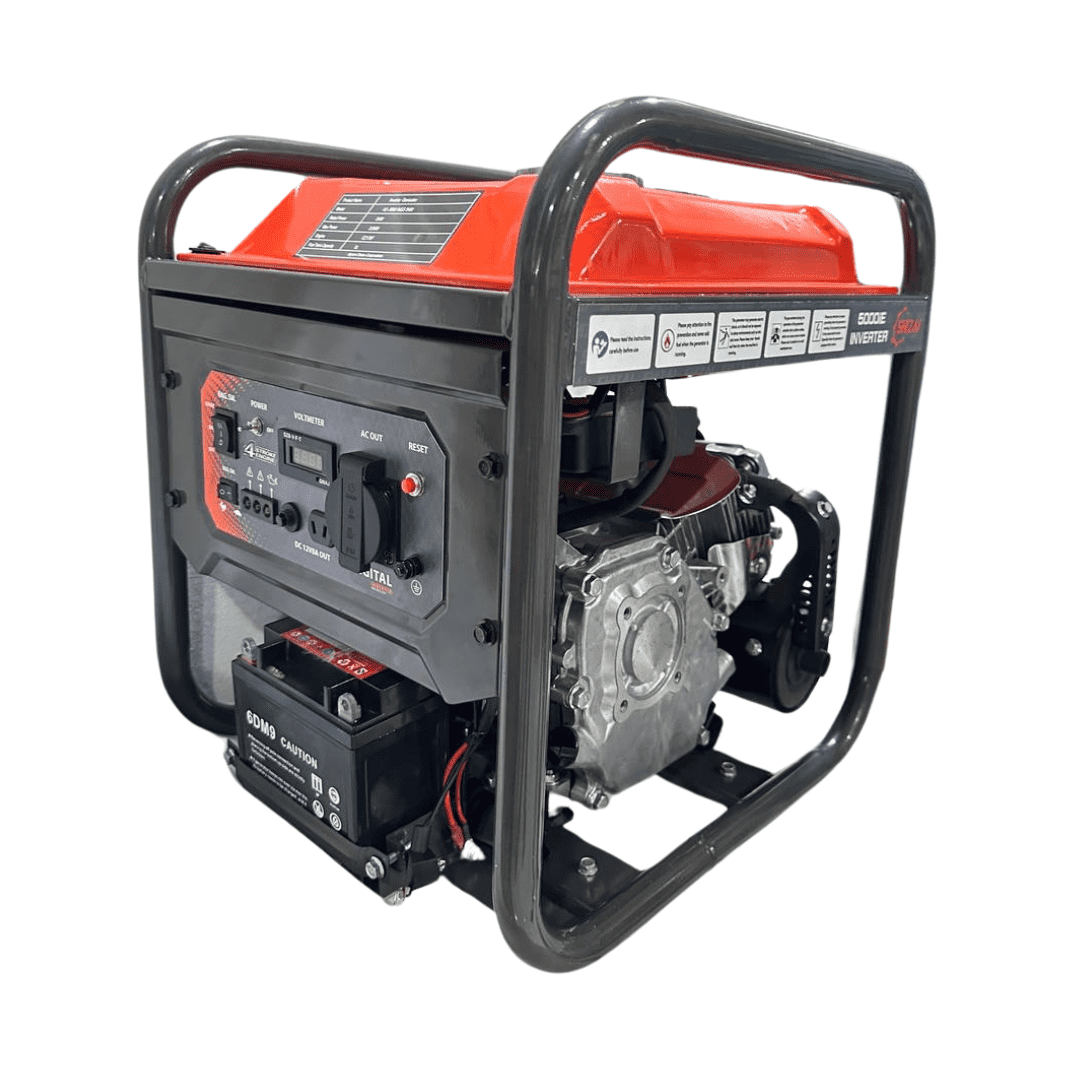

AS-3800INGS PORTABLE INVERTER GENERATOR SET 3.5KW

This is Natraj Super Model number AS-3800INGS GASOLINE INVERTER GENERATOR SET which is 3.5 KILOWATT SELF START AND KICK START GASOLINE (PETROL) and this ALTERNATOR is heavy duty with premium quality as Natraj Super is providing “ONE YEAR SERVICE WARRENTY” on this model as well. One of the most important thing is, all of the products of Natraj Super is well tested in all circumstances on priority basis.

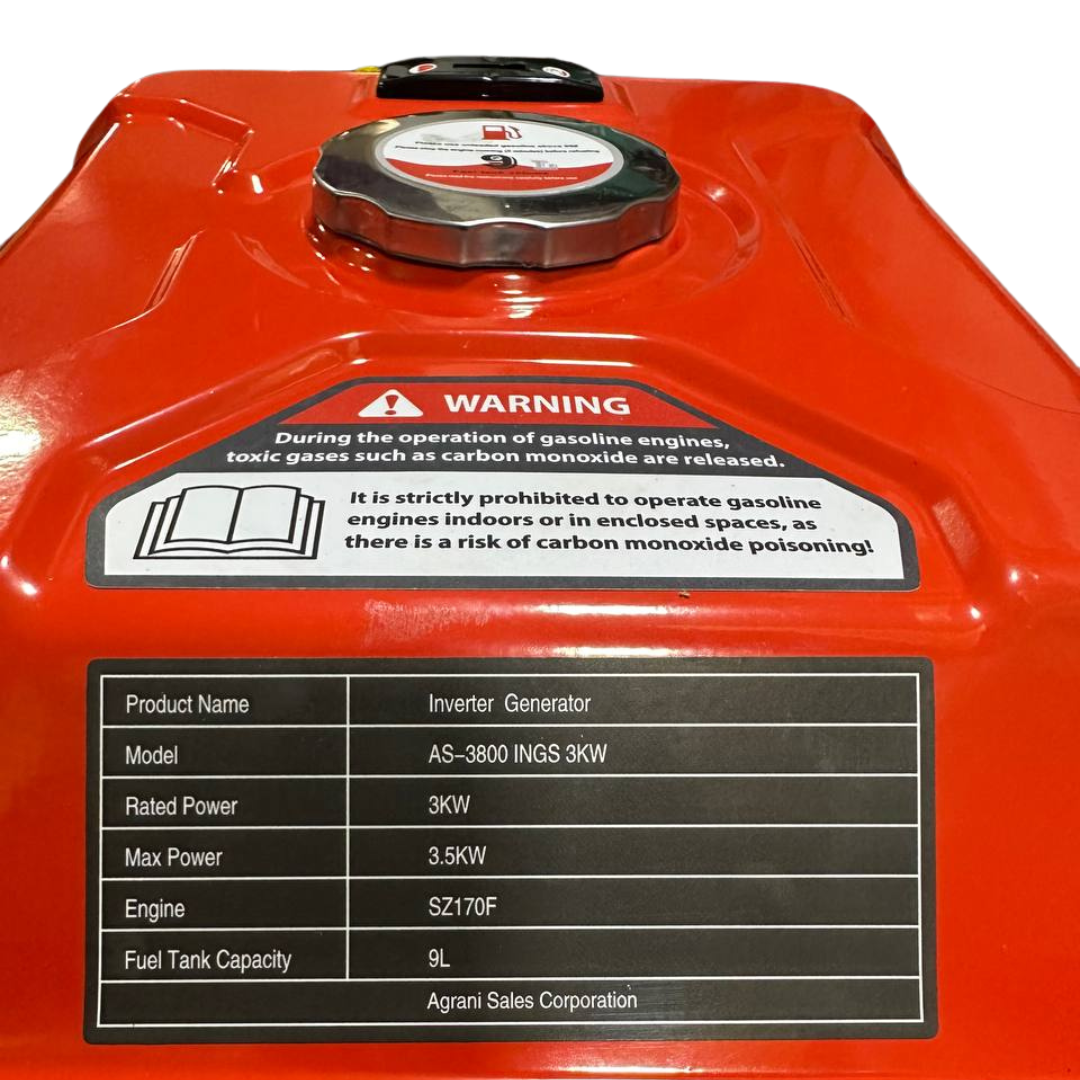

Specifications:

• RATED VOLTAGE(V)- AC230V
• RATED POWER(KW)- 3KW
• MAX POWER(KW)- 3.5KW
• ENGINE MODEL- NATRAJ SUPER AS-188P
• DISPLACEMENT(ML)- 212
• FUEL TANK CAPACITY(L)-9LTR
• START MODE- RECOIL AND ELECTRIC START

• Rated frequency (Hz)	50Hz/60Hz
  Rated output(kW)	3
  Max. output (kW)	3.5
  Voltage (V)	220V ,380V
  Phase NO.	Single phase
  Noise level（7m [d B(A)]	≤76
  Engine Model	SZ170
  Engine Type	Single cylinder , 4-stroke, Air-cooled
  Displacement(ml)	212
  Starting system	Recoil  / electric starter
  Oil capacity (L)	0.6
  Fuel tank capacity(L)	9
  1/2 load continue running time  1/2(hr)	8
  Dimension L*W*H （mm)	480*410*500
  Weight （kg)	27.22/30.7

•  USES
  • IN AGRICULTURE, HOME GENERATOR, COMMERCIAL SITES
  • INSTALL WHERE UN-AVAILABILITY OF ELECTRICITY HAPPENS
